02 · Flowcharts

You designed a solution in Module 01. Now draw it — using a grammar of shapes anyone trained to read flowcharts will understand, regardless of their language.

Why flowcharts

Flowcharts are the first formal representation of an algorithm. Formal means: every shape has a fixed meaning, and two people reading the same flowchart should interpret it the same way.

They help you:

  • See the control flow at a glance.
  • Spot decisions and branches that narrative descriptions hide.
  • Debug logic before you write any code.
  • Communicate across languages and experience levels — a junior dev, a business analyst, and a senior architect can stand in front of the same flowchart and discuss it.

The shape grammar

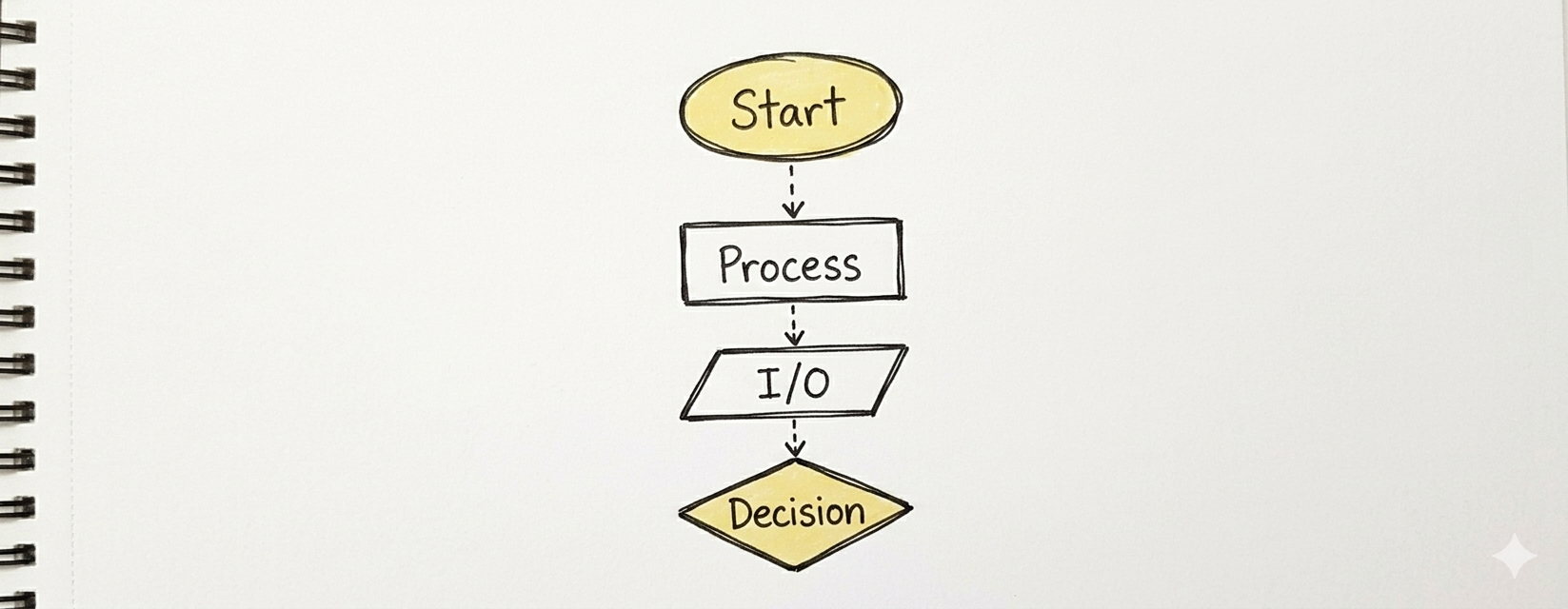

Doodle cheat sheet of flowchart shapes: Start oval, Process rectangle, I/O parallelogram, Decision diamond

These are the core shapes. Every flowchart in this course uses only these.

Shape Meaning Mermaid syntax
Oval / pill Start or End of the process ([text])
Rectangle Process — an action to perform [text]
Parallelogram Input / Output — data flowing in or out [/text/]
Diamond (rhombus) Decision — a yes/no that branches the flow {text}
Circle Connector — jumps to another part of the diagram ((text))
Sub-routine box A pre-defined process (call to another flowchart) [[text]]
Arrow Direction and order of flow -->

Reading order

  • Top to bottom by default.
  • Left to right for horizontal splits.
  • An arrow must leave every shape except End.
  • Every decision diamond has exactly two exits (usually Yes / No).

Example 1 — Sum of two numbers

The simplest possible algorithm. No decisions, no loops.

flowchart TD
    Start([Start]) --> In[/Read a/]
    In --> In2[/Read b/]
    In2 --> Calc[sum = a + b]
    Calc --> Out[/Write sum/]
    Out --> End([End])

Reading it: start → ask for a → ask for b → compute sum → display sum → end.

Example 2 — Is a number even or odd?

First decision point.

flowchart TD
    Start([Start]) --> In[/Read n/]
    In --> D{n mod 2 = 0?}
    D -- Yes --> Even[/Write "even"/]
    D -- No --> Odd[/Write "odd"/]
    Even --> End([End])
    Odd --> End

Key idea: both branches must eventually reach the same End. Don't leave dangling paths.

Example 3 — Largest of three numbers

Nested decisions. Notice how each diamond has exactly two exits.

flowchart TD
    Start([Start]) --> In[/Read a, b, c/]
    In --> D1{a >= b?}
    D1 -- Yes --> D2{a >= c?}
    D1 -- No --> D3{b >= c?}
    D2 -- Yes --> WA[/Write a/]
    D2 -- No --> WC1[/Write c/]
    D3 -- Yes --> WB[/Write b/]
    D3 -- No --> WC2[/Write c/]
    WA --> End([End])
    WB --> End
    WC1 --> End
    WC2 --> End

Trace it yourself with a=5, b=9, c=2: D1 → No → D3 → Yes → Write b → End. Correct: 9 is indeed the largest.

Example 4 — Print numbers from 1 to N (loop)

Loops in flowcharts are expressed with a back-arrow from a process to an earlier decision.

flowchart TD
    Start([Start]) --> In[/Read N/]
    In --> Init[i = 1]
    Init --> D{i <= N?}
    D -- Yes --> Print[/Write i/]
    Print --> Inc[i = i + 1]
    Inc --> D
    D -- No --> End([End])

Anatomy of a loop:

  1. Initialization — i = 1.
  2. Condition — i <= N? (a decision).
  3. Body — what runs if the condition is true (Write i).
  4. Update — change whatever the condition depends on (i = i + 1).
  5. Back to the condition — the back-arrow.

If you miss the update step, you get an infinite loop. Very common beginner bug.

Example 5 — Login with 3 attempts

A real-world pattern: retry with a limit.

flowchart TD
    Start([Start]) --> Init[attempts = 0]
    Init --> D1{attempts &lt; 3?}
    D1 -- No --> Locked[/Write &quot;Account locked&quot;/]
    Locked --> End([End])
    D1 -- Yes --> InP[/Read password/]
    InP --> D2{password correct?}
    D2 -- Yes --> OK[/Write &quot;Welcome&quot;/]
    OK --> End
    D2 -- No --> Inc[attempts = attempts + 1]
    Inc --> Fail[/Write &quot;Wrong password&quot;/]
    Fail --> D1

Two exits from the loop: either the user gets in, or they hit the attempt limit. Always think about how the loop ends when you design it.

Example 6 — Average of N numbers

Combining a loop with accumulation.

flowchart TD
    Start([Start]) --> In[/Read N/]
    In --> Init[sum = 0, i = 1]
    Init --> D{i &lt;= N?}
    D -- Yes --> ReadX[/Read x/]
    ReadX --> Acc[sum = sum + x]
    Acc --> Inc[i = i + 1]
    Inc --> D
    D -- No --> Check{N &gt; 0?}
    Check -- Yes --> Calc[avg = sum / N]
    Calc --> Out[/Write avg/]
    Check -- No --> Err[/Write &quot;N must be positive&quot;/]
    Out --> End([End])
    Err --> End

Edge case handled: N = 0 would cause a division by zero, so we check before dividing. Always hunt for cases that break the "happy path".

Common mistakes

  1. No Start or End. Every flowchart is a process — processes have boundaries.
  2. Decisions with only one exit. A diamond that only has Yes isn't a decision; it's a question without consequence. Make both branches meaningful.
  3. Arrows that don't rejoin. After a branch, all paths must reach End (or loop back) — no dangling threads.
  4. Loops with no exit condition. If the decision inside a loop never becomes No, the flowchart describes an infinite loop.
  5. Mixing "what" and "how". Flowcharts describe what happens, not how in a specific language. Keep syntax out of them.
  6. Too much in one diamond. if (x > 0 AND y < 10 AND z != 5) inside a single decision is hard to read. Split into sequential decisions when logic gets complex.
  7. No clear variable names. Set x = 5 tells a reader nothing. Set retry_count = 0 tells a story.

Practice problems

Draw a flowchart for each. Solutions will be worked in class.

  1. Read two numbers and print the larger one.
  2. Read a number and print its absolute value (without using a built-in function).
  3. Read a year and print whether it's a leap year (divisible by 4, except century years not divisible by 400).
  4. Print the multiplication table of a given number up to ×10.
  5. Sum of the digits of a 3-digit number.
  6. Read numbers until the user enters 0, then print their count and their average.
  7. Guess-the-number game: computer picks 1–10, user has 3 tries.
  8. Calculate a final grade given 3 partial grades and the weights (e.g., 30%, 30%, 40%). Display "Passed" if ≥ 6.0, "Failed" otherwise.

Tools

  • diagrams.net — free, works in the browser, no sign-up.
  • Lucidchart — free tier, cloud.
  • Mermaid Live Editor — the same format used in the examples above; copy-paste-tweak.
  • Pencil and paper — still the fastest way to iterate. Draw ugly, iterate fast, clean up later.

Closing idea

A flowchart is a visual algorithm. If you can't draw your solution as a flowchart, you probably don't understand it well enough to code it yet. Get it right on paper first; the computer will thank you.

Next: Module 03 — Pseudocode — the text-based companion to flowcharts.
